商品の詳細:
|
| イクシム: | 18.5インチ FHD TFTディスプレイ | ピクセル数: | 1920×1080 |
|---|---|---|---|
| 外形寸法図: | 430.37 ((H) *254.6 ((V) *11.2 ((D) | アクティブ エリア: | 408.96 (H) × 230.04 (V) mm |
| インターフェース: | LVDS 30PIN | 視野角: | 85/85/85/85 |
| 輝度: | 1200cd/m2 またはカスタム | 表示モード: | TFT 通常は黒 |
| 見る方向: | ALL/IPS | 動作温度: | -30 ~ 80 °C |
| 保存温度: | -30 ~ 80 °C | ||
| ハイライト: | Sunlight Readable TFT LCD Display Panel,LVDS Interface TFT LCD Display Panel,18.5 Inch TFT-LCD Display Panel |
||

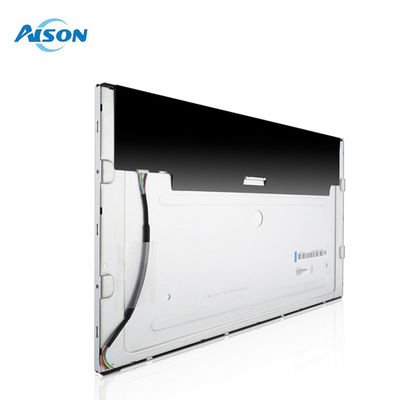

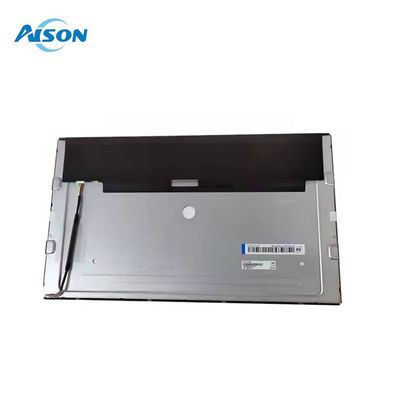

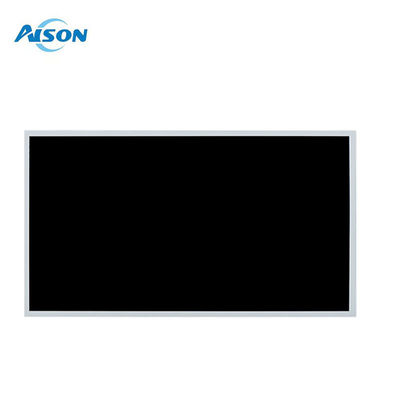

18.5 Inch 1920x1080 Sunlight Readable TFT-LCD Display Panel LVDS Interface 1200 Nits
1.1 Introduction
This is a color 18.5 inch sunlight readable tft lcd display panel with 1920RGBx1080resolutions. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This tft displayis only 18.5" in diagonal, packed with RGB pixels, for making very small high-density displays.
The sunlight readable 8.5’’ tft lcd panel is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit, it is 1920RGBx1080 dots.
This sunlight readable 18.5 tft lcd screen is with all viewing angel display, and built in with controller IC, it supports LVDS interface, high brightness 1,500 nits, it is suitable for outdoor application.
The 8.5’’ sunlight readable tft display is often used for any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and outdoor application.
1.2 Features
LED back-light
LVDS interface
RoHS Compliant
16.7M color depth
FHD1920X1080
Wide Temperature
General Data
| Model Name | 18.5 inch TFT Display Module |
| Resolution | 1920(RGB)×1080, FHD |
| Model Size (W*H*T) | 430.37(H)*254.6(V)*11.2(D) |
| Display Area (W*H) | 408.96(W)×230.04(H) mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 120 cd/m2 |
| Pin number | 30 pin |
| Contrast Ratio | 1200:1 |
| Operating temperatures | -30 ~ 80 °C |
| Storage temperatures | -30 ~ 80 °C |
Drawing
Product Details
TFT Applications:
