商品の詳細:
|
| Item: | 4.3 inch DSI Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline dimension: | 105.5x67.2x11.4mm | Active area: | 154.08x85.92mm |
| Interface: | DSI&USB | Brightness: | 450cd/m2 |
| Display mode: | IPS,Normally Black | Operating temperatures: | -20 to 70 degree |
| Storage temperatures: | -30 to 80 degree | ||
| ハイライト: | 4.3 inch IPS LCD display for Raspberry Pi,capacitive touch screen with MIPI DSI,HDMI TFT display with IPS panel |
||

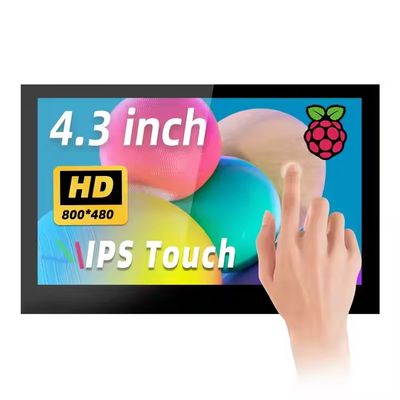

4.3 Inch IPS LCD Display for Raspberry Pi with Capacitive Touch Screen and MIPI DSI Interface
General Description
4.3inch IPS 800x480 MIPI DSI LCD Module for Raspberry PI 3B/ 3B+ / 4B
General Spec
| Model Name | 4.3 inch DSI TFT Touch Display |
| Resolution | 800x480 |
| Model Size (W*H*T)mm | 105.5x67.2x11.4mm |
| Display Area (W*H)mm | 92.8x53.86mm |
| Interface | MIPI DSI |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 400 cd/m2 |
| Pin | 15 |
| Touch | Captouch |
| Application | For Raspberry Pi |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
Product introduction
IPS full viewing angle display○800X480 resolution, up to 178° full viewing angle panel

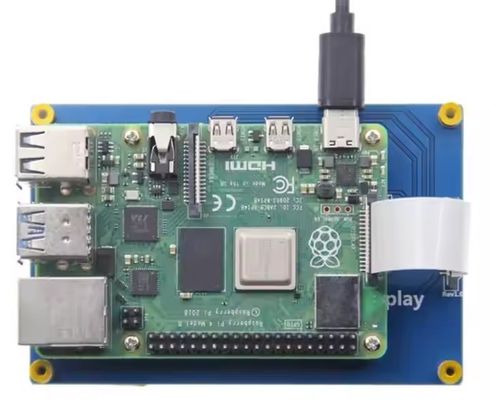

Use as a Raspberry Pi display
○Support Raspberry Pi back-to-back direct installation and locking
○Support mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.
○When used with Raspberry Pi, it supports mainstream systems such as Raspbian, Kali linux, ubuntu, etc., supports touch control,
plug-and-play driver-free.
Use as a mini PC monitor
○It can be used as a computer secondary screen display (Windows supports 5-point touch), and can be used with other Mini PC
monitors to display
