商品の詳細:
|
| 名前: | 7インチHDMI RTPタッチディスプレイ | 解決: | 1024X600 |
|---|---|---|---|
| アウトラインディメンション: | 164.9*122.96*13.2mm | アクティブエリア: | 154.08×85.92ミリ |
| インタフェース: | HDMI&USB | 表示角度: | 85/85/85/85 |
| 輝度: | 450cd/m2 | 表示モード: | 通常は黒 |
| 見る方向: | ALL/IPS | 動作温度: | -20から70度 |
| 保存温度: | -30から80度 | ||
| ハイライト: | 7 inch IPS HDMI display,Raspberry Pi resistive touch screen,HDMI TFT display for Raspberry Pi |
||
7 Inch IPS Display HDMI Raspberry Pi Resistive Touch Screen For Raspberry Pi
General Description

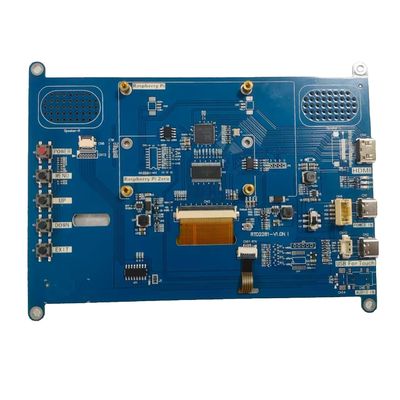

RTD2660-V1.0N is a 7.0inch LCD display driver board; supports HDMI input;supports I2S digital audio signal input and speaker output; Support 4-wire resistive touch panel or 6-wire capacitive touch panel.( This function can onlybe selected from two )
General Spec
| Model Name | 7 inch HDMI TFT Display with touch screen |
| Resolution | 1024X600 |
| Model Size (W*H*T)mm | 164.9*122.96*13.2 |
| Display Area (W*H)mm | 154.08x85.92 |
| Interface | HDMI &USB |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 450 cd/m2 |
| Pin | 50 |
| Touch | Captouch |
| Application | For Raspberry Pi |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This 7 inch 1024x600 TFT LCD touch display is compatible with all series of Raspberry Pi and various Windows operating systems (Windows 11, 10, 8.1, 8, and 7), this display is perfect for users who need a versatile solution.
