商品の詳細:
|
| 名前: | 2.99インチストレッチバーディスプレイ | 解決: | 268x800 |
|---|---|---|---|
| アウトラインディメンション: | 26.96*80.08*1.72mm | アクティブエリア: | 24.12*72mm |
| インタフェース: | RGB 18ビット+SPI3W | 表示角度: | 85/85/85/85 |
| 輝度: | 800 CD/M2 | 視聴方向: | すべて/ips |
| 動作温度: | -20〜70度 | 貯蔵温度: | -30〜80度 |
| ハイライト: | 3 inch bar LCD display,ST7701S TFT LCD module,268x800 stretched LCD screen |
||

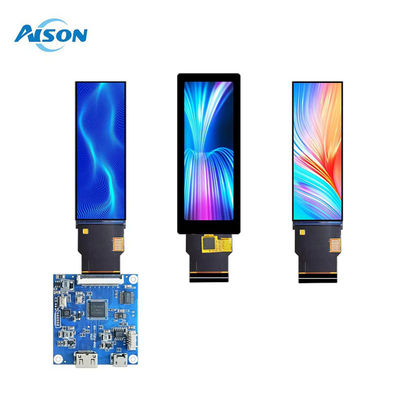

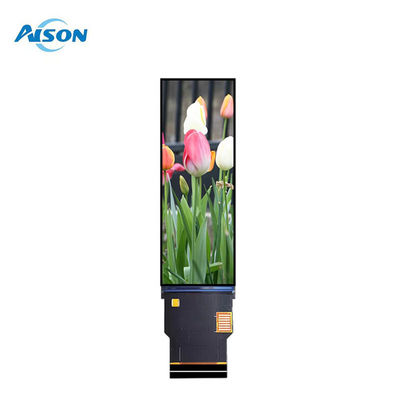

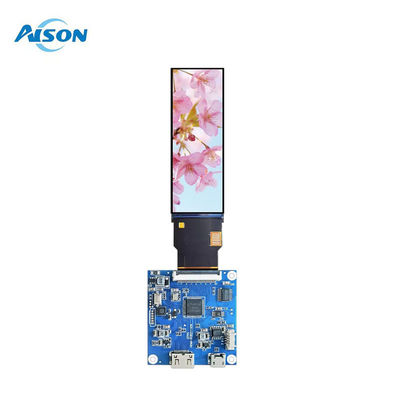

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S
General Description
Z0299WV01is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.
Reliability and Durability:
Our BAR LCD Display undergoes rigorous environmental and reliability testing, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring long-lasting performance.
Mechanical Drawings and Packaging:
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.
Usage Precautions:
- Handle with care to avoid mechanical shock and damage.
- Store in conditions avoiding direct sunlight and harmful gases.
- Ensure proper grounding to prevent static damage during handling and assembly.
General Data
| Model Name | 2.99 inch Bar Type LCD Display |
| Resolution | 268x800 |
| Model Size (W*H*T)mm | 26.96*80.08*1.72mm |
| Display Area (W*H)mm | 24.12*72mm |
| Interface | RGB 18bit+SPI3W |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 800 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
