商品の詳細:
|
| 製品名: | 12.3インチMIPI TFTディスプレイ | 解決: | 1920x720 |
|---|---|---|---|
| モジュールサイズ: | 310×128×6.8mm | アクティブエリア: | 292.03×109.5mm |
| LCMタイプ: | LVDS | 輝度: | 1000cd/m2 |
| 動作温度: | -30～80度 | 保管温度: | -35から85度 |
| 表示タイプ: | ノーマルブラック | ||
| ハイライト: | 12.3 Inch Automotive TFT LCD Display,1920x720 IPS LVDS Display,1000 Nits Industrial TFT Screen |
||

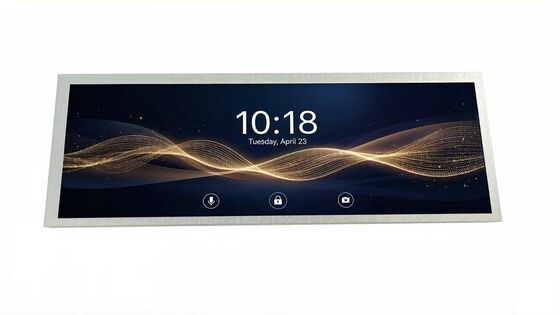

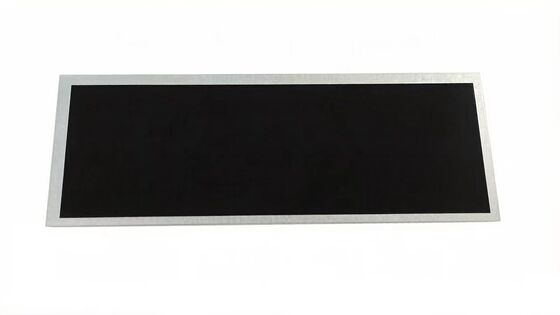

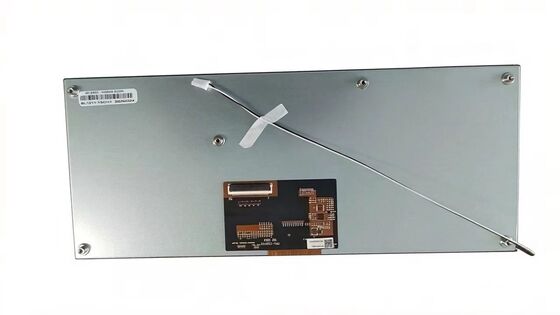

12.3 Inch 1920*720 1000 Nits LVDS Interface Universal Car Display Automotive TFT LCD Panel
General Data
| Model Name | 12.3 Inch MIPI TFT Display |
| Resolution | 1920x720 |
| Model Size (W*H*T) |
310x128x6.8mm
|
| Display Area (W*H) | 292.03x 109.5 mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 1000 cd/m2 |
| Pin number | 50 pin |
| Contrast Ratio |
1200:1
|
| Operating temperatures | -30 to 80 ℃ |
| Storage temperatures | -30 to 85 ℃ |
Drawing
TFT Application
From Automotive,industrial machinery and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
